Volleyball Competition Indoor Posts

Manufactured to Order - Please fill in your details in the product enquiry form below.

Delivery of goods will be confirmed once order is placed.

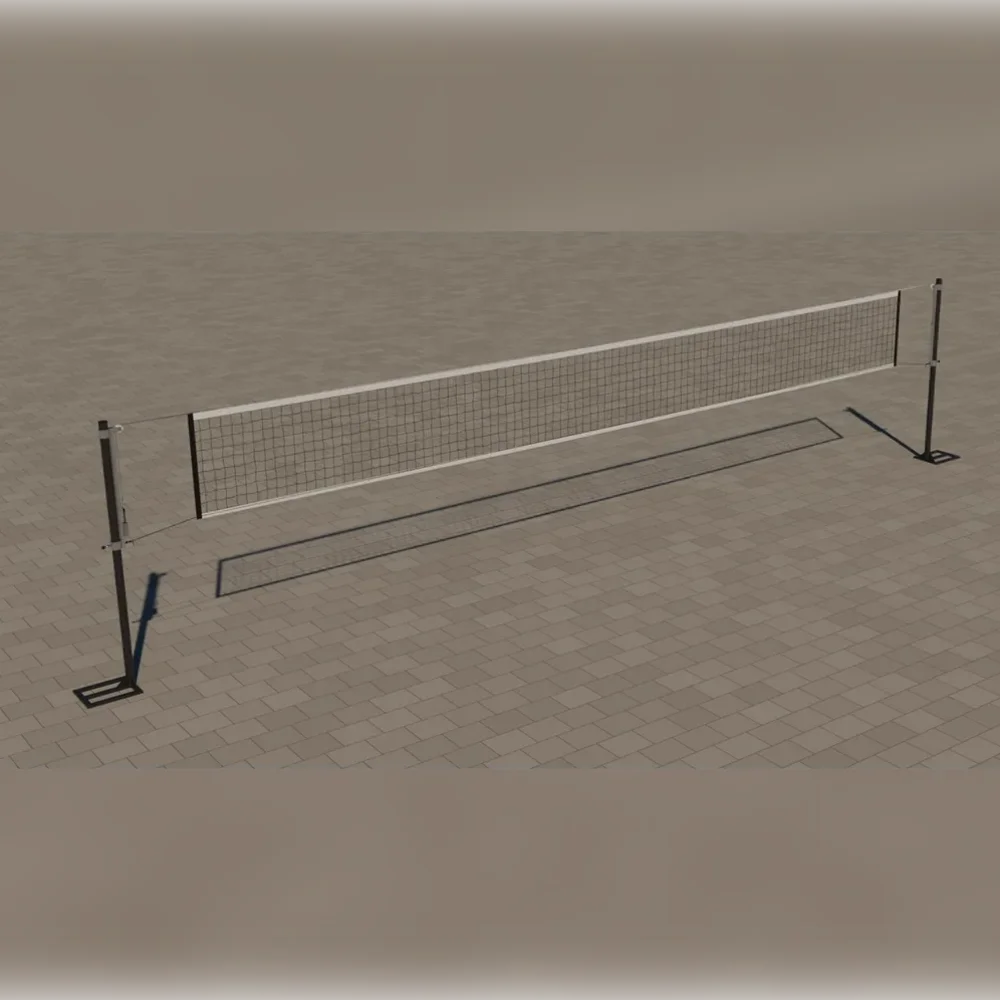

The Gimtrac indoor volleyball posts are welded to a low 500 x 400 mm base frame with gussets and bolted to the hall floor. A slider on each post sets the net to men’s, women’s or junior height in seconds.

Specifications / What’s Included:

• Net height 2.43 m, 2.24 m or 2.13 m at the centre (men, women and juniors)
• Posts: Ø76 mm steel tube, 2.5 m above the floor
• Base: 500 x 400 mm welded frame
• Fixing: bolted to the floor (anchors not supplied)
• Net: Deportiva 4 mm black, 9.5 x 1 m, 100 mm mesh
• Tensioning: steel cable over a sheave, ratchet strap
• Finish: very dark grey powder coat, bright zinc sliders
• Weight: approx. 23 kg a post

Features:

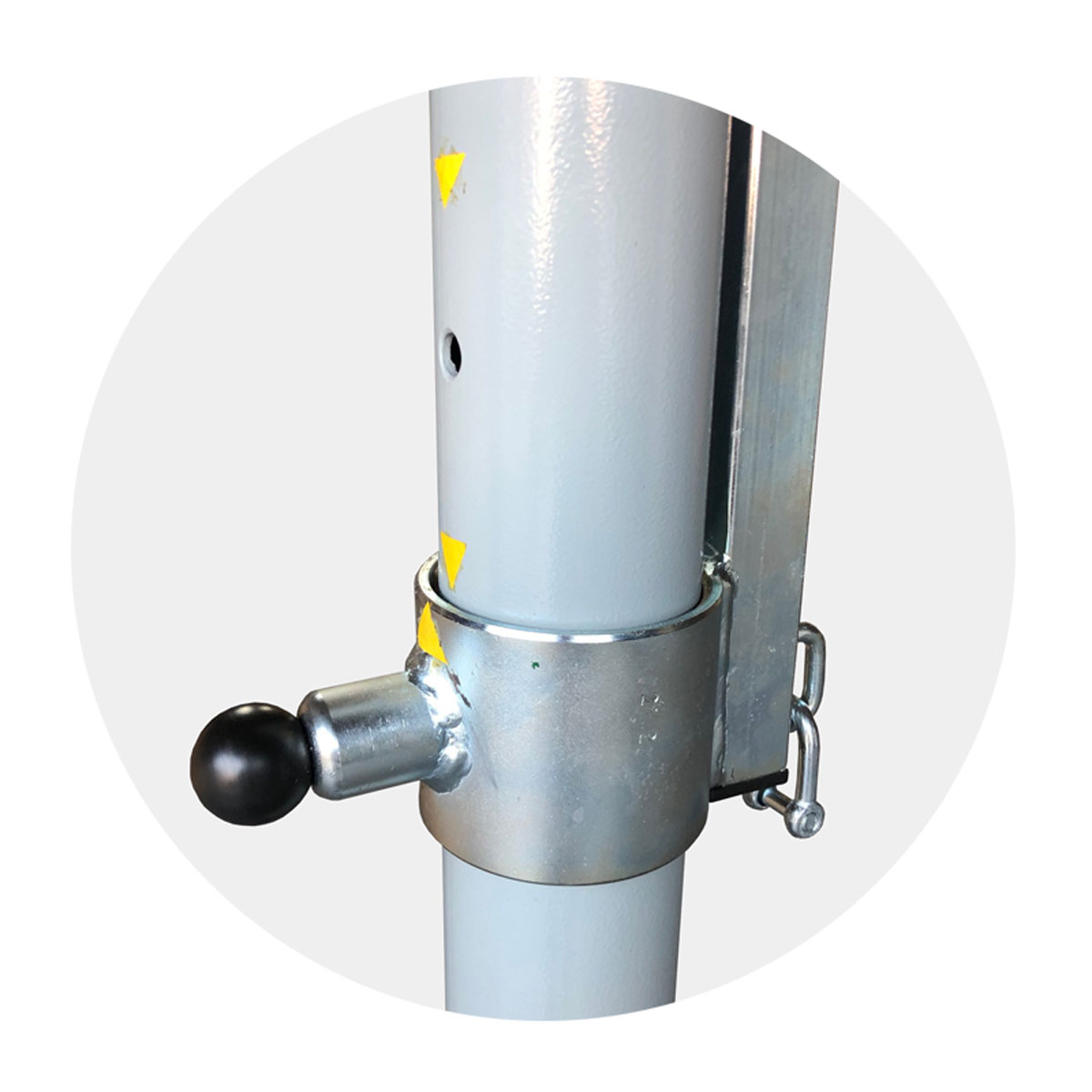

• Height adjustable: a slider runs on each post, and a spring-loaded selector pin with a black ball knob drops into the post at each height

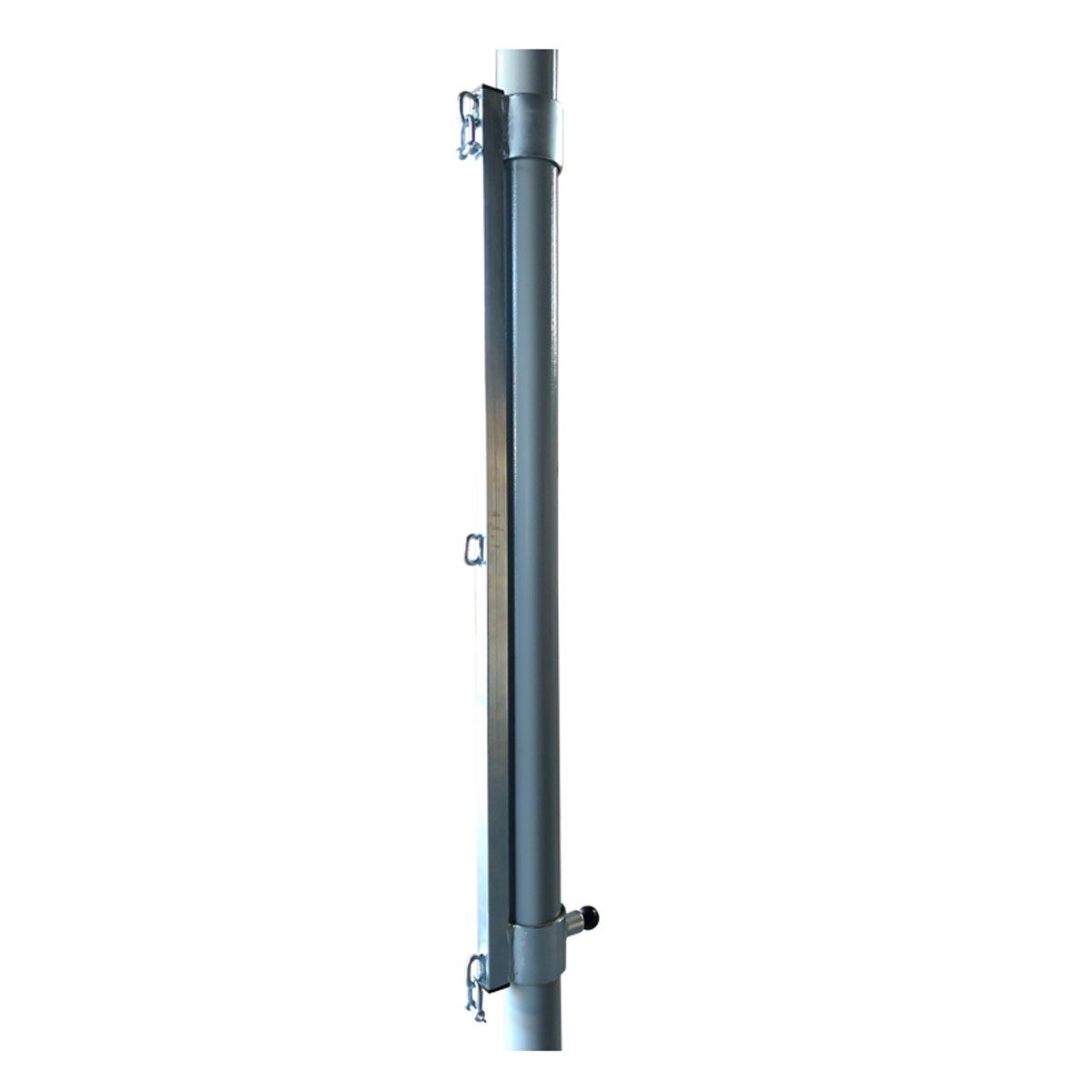

• The net’s top cable runs over a white acetal sheave at the top of each slider: shackled to a lashing eye on one post and to a ratchet strap that pulls the net tight on the other

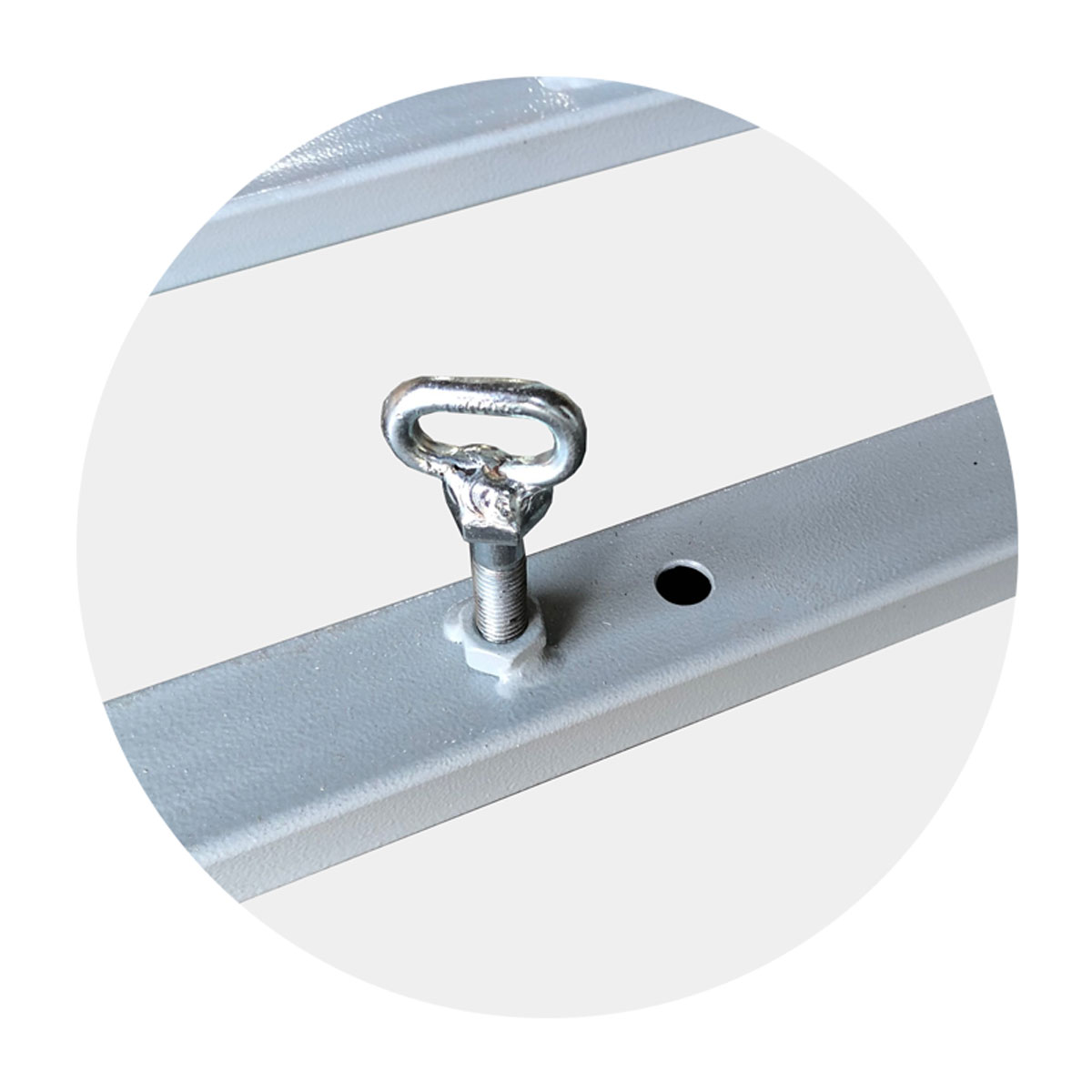

• Each post is welded to a low 500 x 400 mm base frame with gussets, bolted to the hall floor with anchors
• A Deportiva 4 mm black competition net with white bands, its bottom cord lashed to chain-link eyes on the sliders
• Very dark grey powder coat, bright zinc plated sliders and black caps on the post tops

Other net heights and powder-coat colours are made to order. Contact us for a quote.

Brochure: Download the Gimtrac Volleyball Posts brochure (PDF)

R9,217.39 ex VAT

Manufactured to order – dispatched once made. Lead time confirmed on your quote.

PDF Download spec sheet
