Tennis Umpire Chair
Tennis Umpire Chair
Manufactured to Order - Please fill in your details in the product enquiry form below.
Delivery of goods will be confirmed once order is placed.

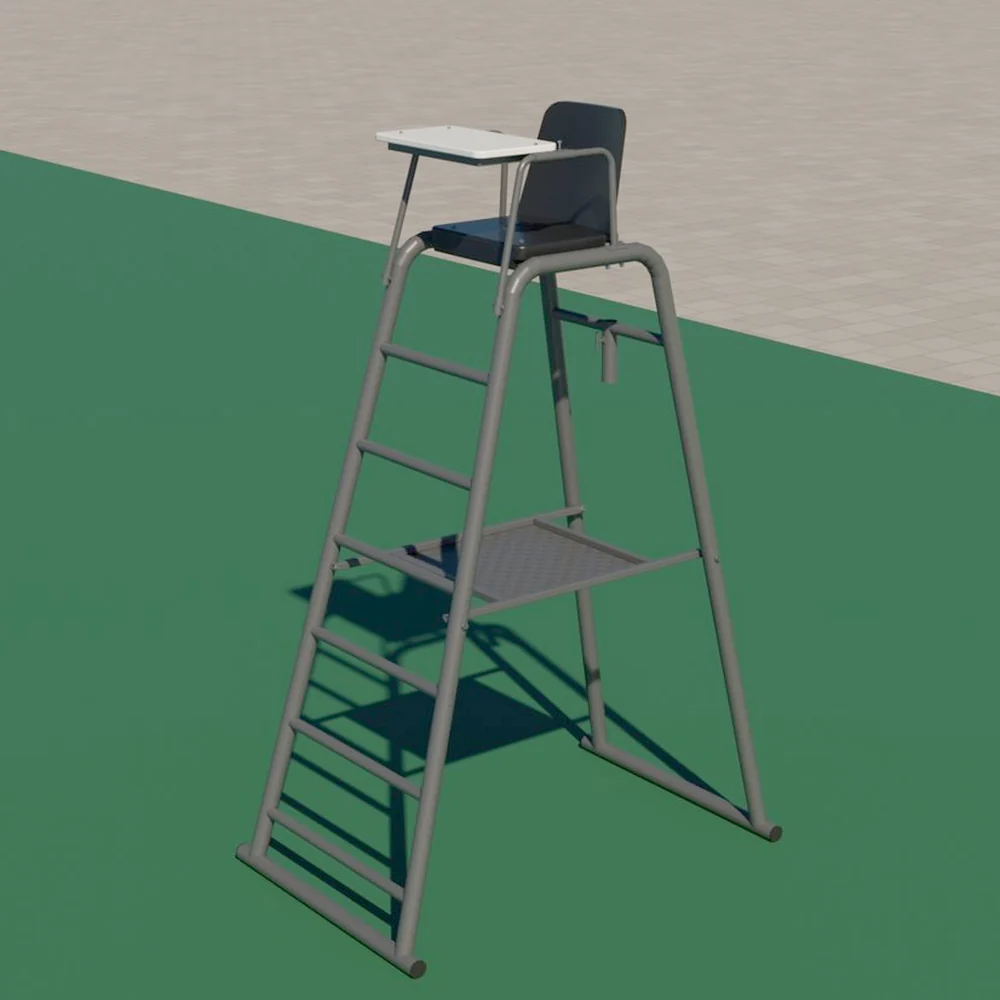

A rigid welded steel tennis umpire chair with a six-step ladder, ES 100 moulded seat, writing table and fold-down shelf. Seat height 2040 mm, the umpire’s eyes well above the net. Manufactured by Gimtrac in Centurion, South Africa.
Tennis umpire chair
Rigid welded steel · six-step ladder · writing table · powder coated dark grey (charcoal grey RAL 7021 as standard; other colours on request).
At a glance

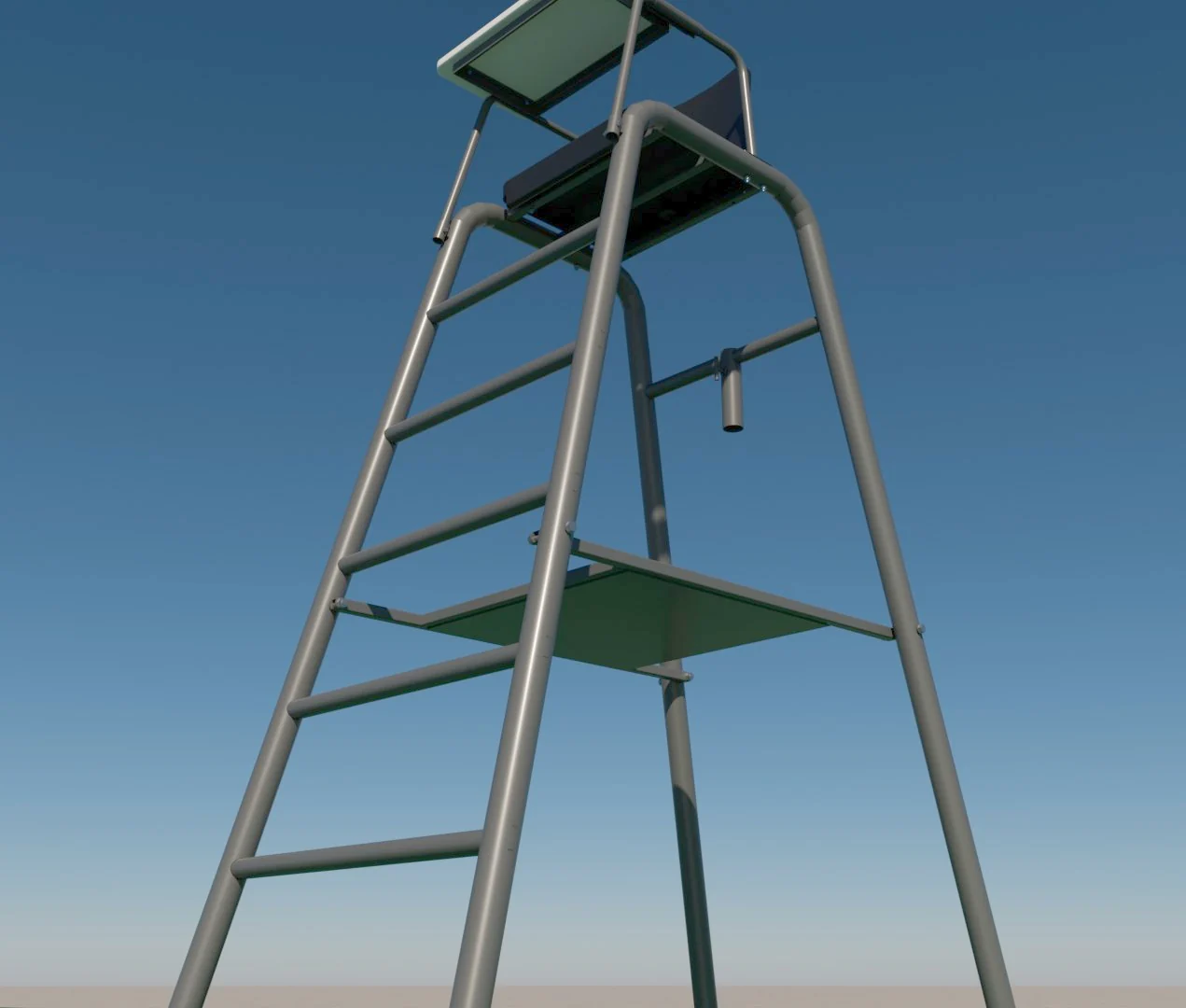

- Seat height: 2040 mm, the umpire’s eyes well above the net
- Overall: 995 mm wide, 1535 mm deep, 2440 mm high
- Rigid: a welded steel frame on splayed legs and two ground rails
- For the umpire: six-step ladder, ES 100 seat, writing table, shelf
- Ships compact: the frames stack, seat and arm rests off
Specification
| Overall width | 995 mm |
| Overall depth | 1535 mm |
| Overall height | 2440 mm, to the top of the seat back |
| Seat height | 2040 mm, the seat platform above the court |
| Ladder | 6 steps |
| Seat | ES 100 moulded seat |
| Arm rests | removable, the writing table on one |
| Shelf | fold-down, under the seat |
| Frame | welded steel, front and rear ground rails |
| Finish | powder coated dark grey |
Features

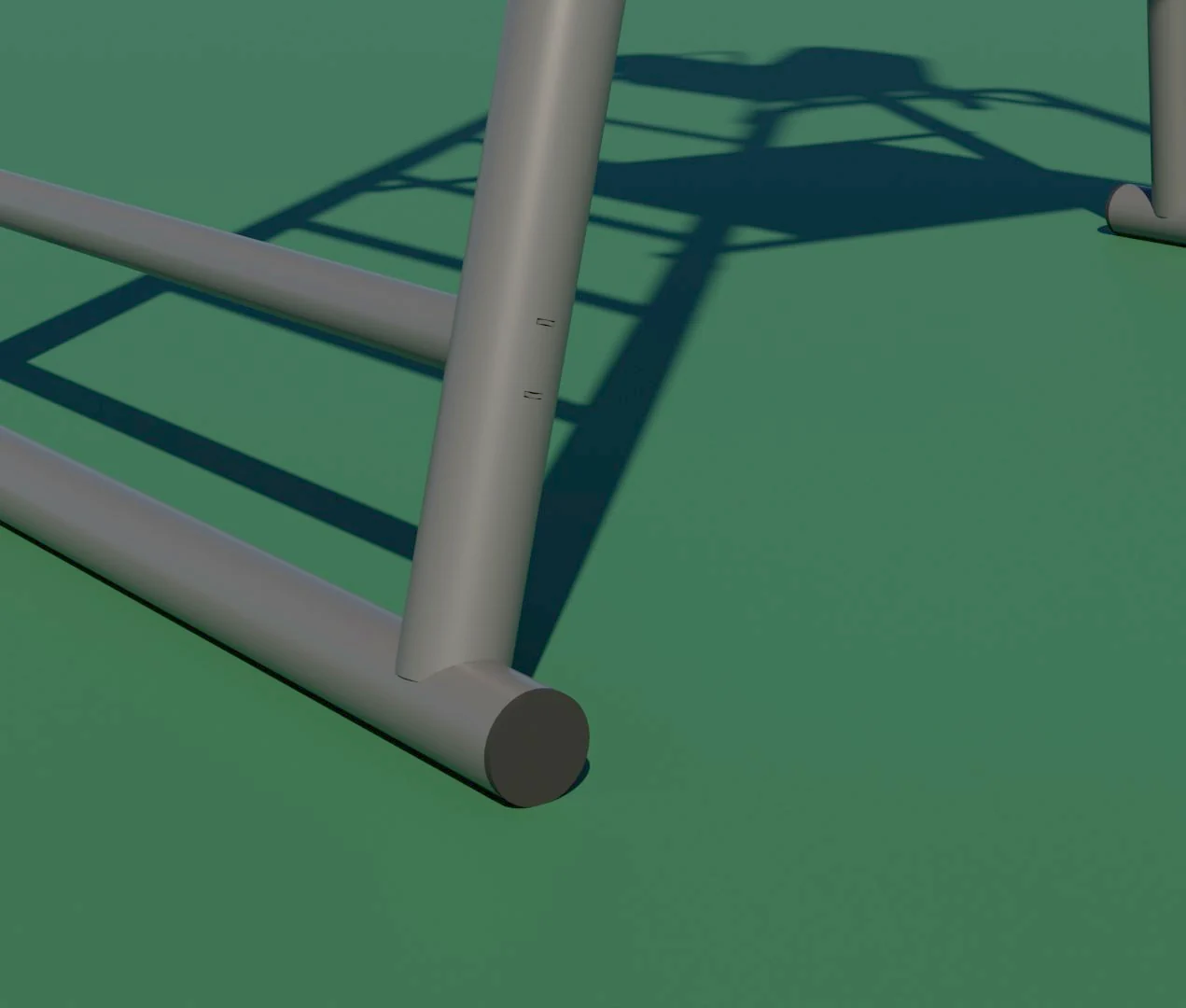

- A rigid welded steel frame of bent tube: nothing folds, nothing to set up – it stands on the court ready for the umpire, steady on its splayed legs and its front and rear ground rails
- Laser-cut, notch-bent goosenecks carry the seat platform; tab and slot joints line every part up before it is welded, so each chair is made exactly like the last

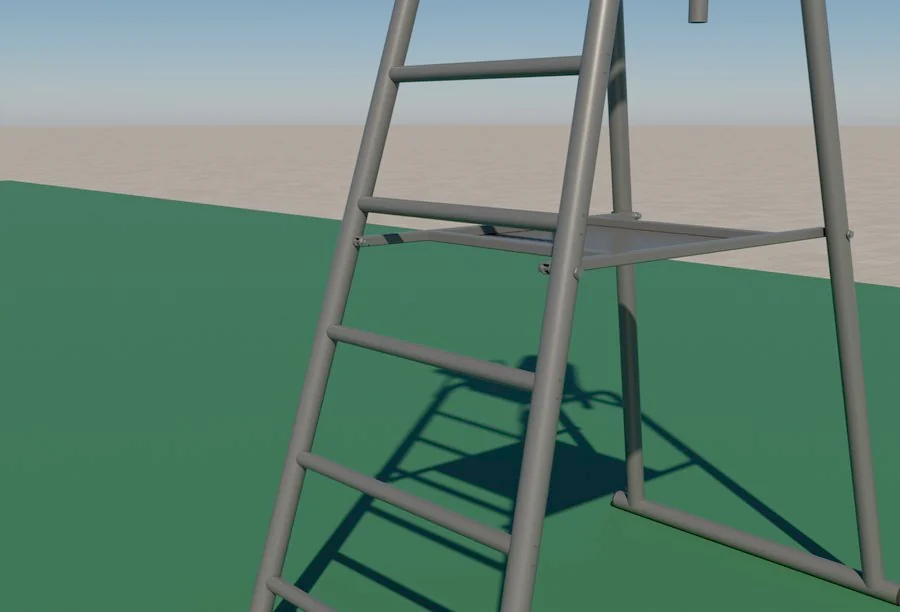

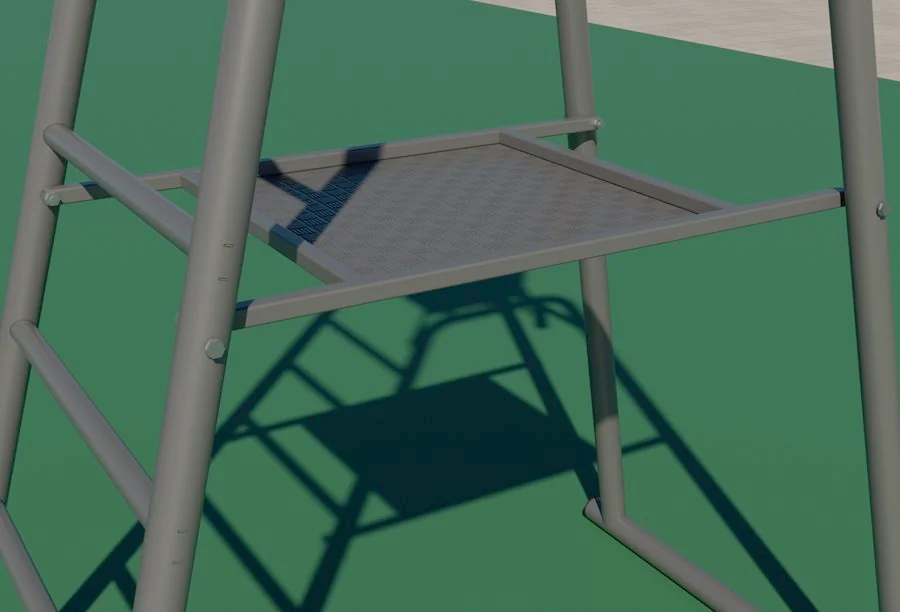

- A six-step ladder up the front, a fold-down shelf under the seat for the umpire’s kit, and an ES 100 moulded seat

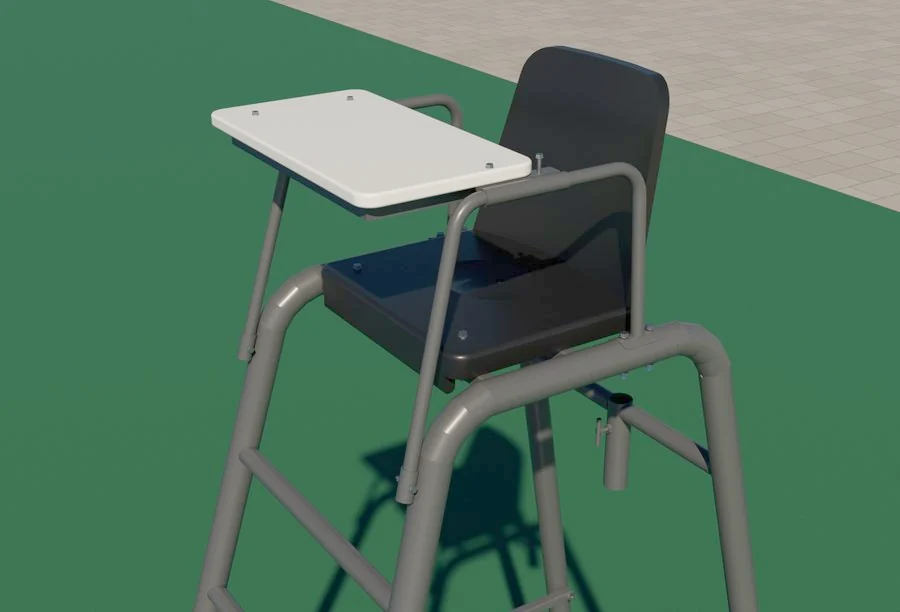

- Removable arm rests, with a writing table that swings on the arm rest for the score sheet
- An umbrella holder behind the seat: the pole drops through and clamps at any height with a hand screw
- Ships compact: with the seat and arm rests off the frames stack, one inside the next

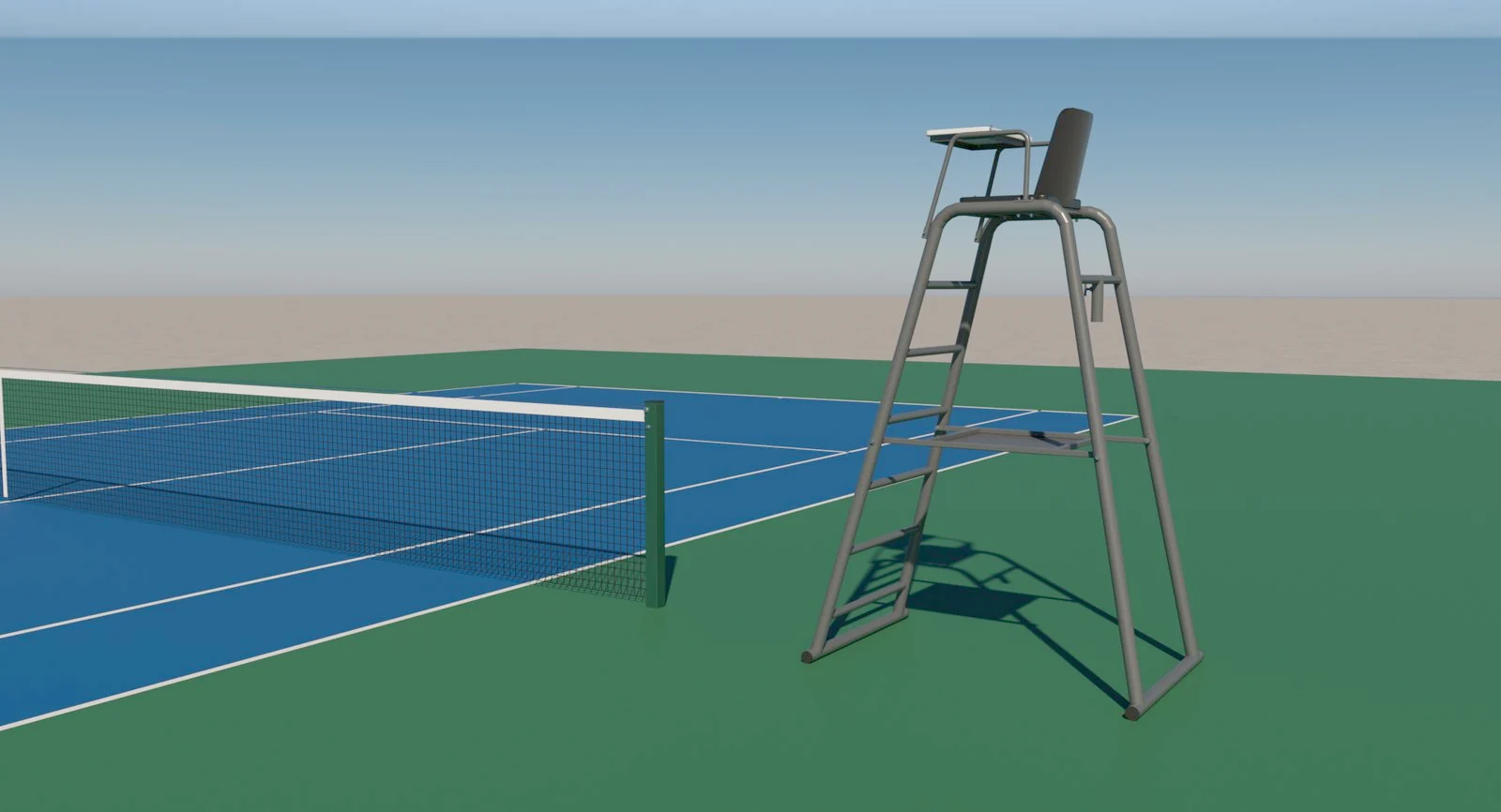

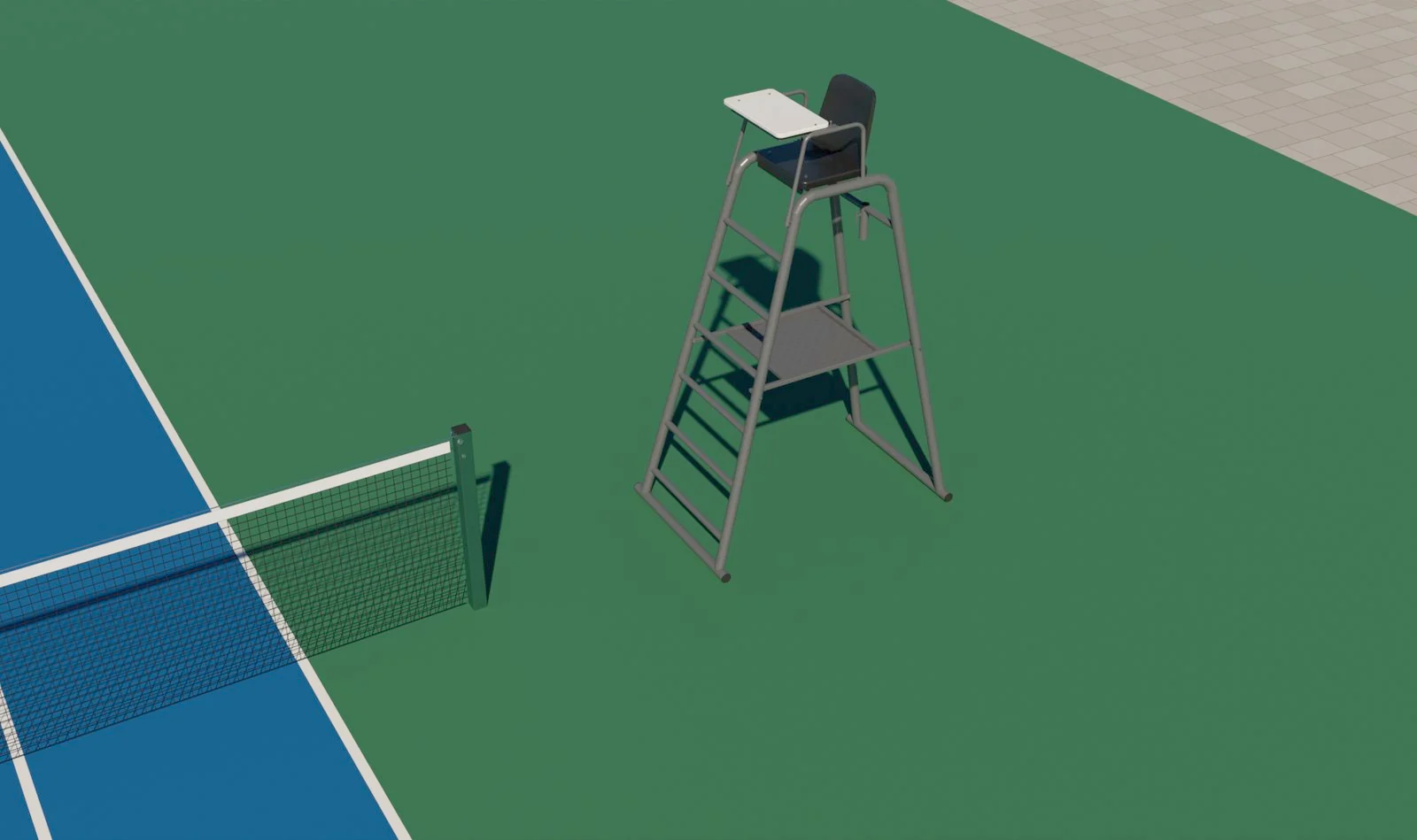

- Stands free on its ground rails on the net line – nothing is fixed to the court
Made to order
Designed in CAD and made in-house on our laser tube cutter and laser welder. Ask us for other seat heights, other seats, wheels to move it off the court, any powder coat colour, your logo on the chair, or a chair for volleyball, badminton or padel.
Dimensions from the CAD model.
R8,691.30 ex VAT
In Stock
