Pull-up Bar for Swedish Wall Bars (Standard)

Manufactured to Order
Please note that this is a manufactured to order product.

Delivery of goods will be confirmed once order is placed.

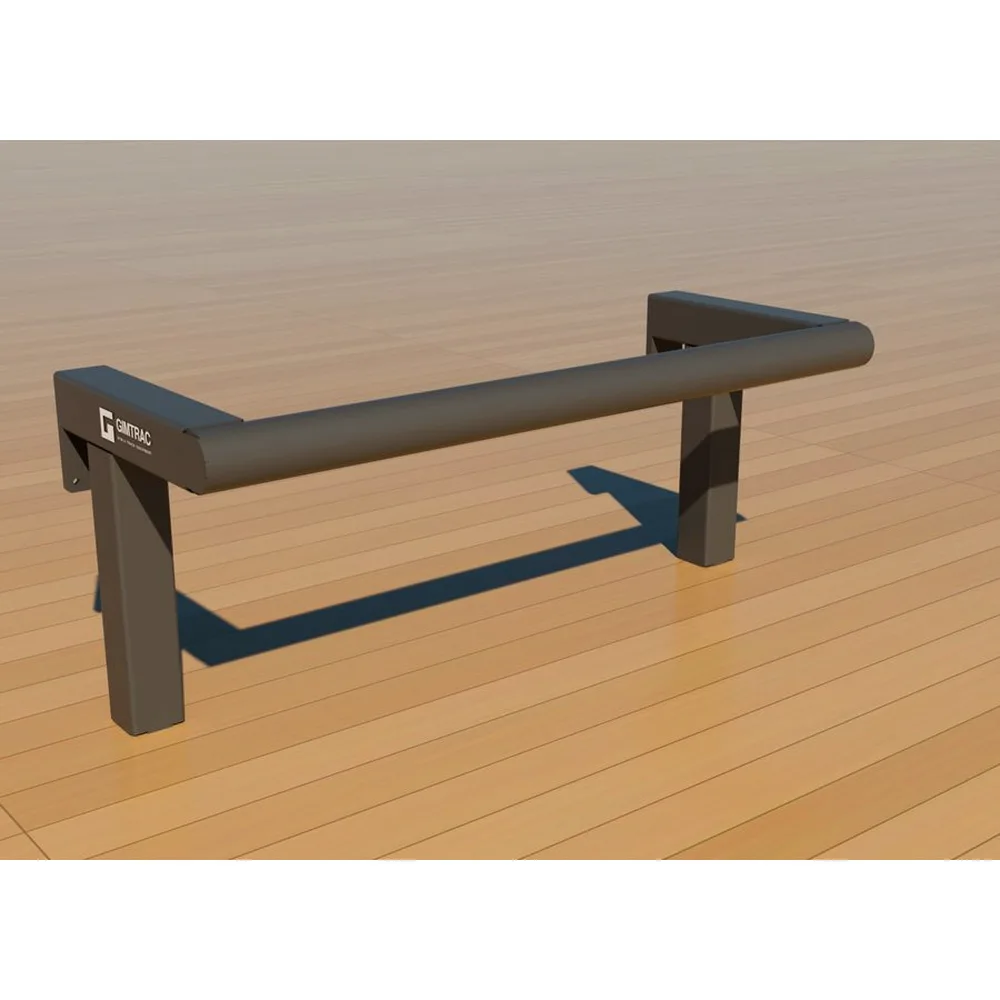

A steel pull-up bar that hooks over a rung near the top of a wall bar. Included with the Gimtrac Swedish Wall Bar, and available separately.

Specifications / What’s Included:

• Width: 659 mm over the arms
• Bar: 655 mm between the arms
• Reach: 335 mm from the wall to the bar
• Legs: 220 mm, bearing on the rung below
• Max user weight: 120 kg
• Fits: Gimtrac’s wall bar, rungs at 200 mm centres
• Finish: dark grey powder coat
• Weight: approx. 5 kg

Features:

• Hooks over a rung near the top of the wall bar: the rung drops into the slot between the back plate and the legs, and the legs bear on the rung below. Nothing to bolt, on and off in seconds

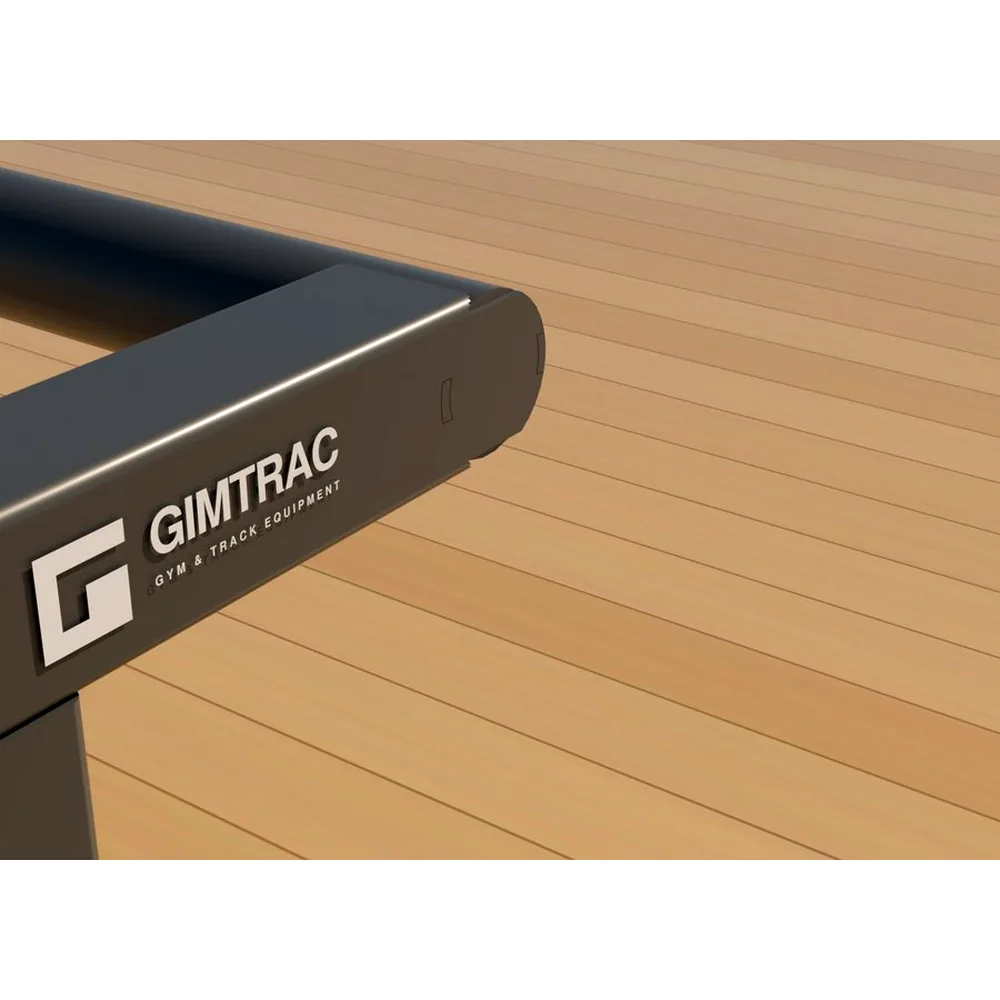

• The bar lies in a cradle cut into each arm, and the arm’s outer wall closes the bar’s end: no end caps to lose
• Welded into one rigid piece; every joint slotted and tabbed on our tube laser, so it is square and true
• Back plates and foot caps laser cut with rounded corners to match the tube
• Dark grey powder coat as standard; any colour on request

How it fits: lift the bar over a rung and let it drop. The rung sits in the slot between the back plates and the legs, the arms rest on it and the legs bear on the rung below. The harder it is loaded, the harder the legs bear on the wall bar, so it cannot lift off in use. Made for the Gimtrac steel wall bar (rungs at 200 mm centres, 800 mm wide) and any wall bar with the same rung size and spacing.

Made in-house by Gimtrac in Centurion: designed in CAD, every joint slotted and tabbed on our 6 kW tube laser and welded with our laser welder. Other sizes, reaches and grip layouts, any powder-coat colour, galvanised or zinc plated, are made to order. Contact us for a quote.

R269.57 ex VAT

In Stock
